Ouroboros Cr/Dl Carbon Road Handlebar

Description

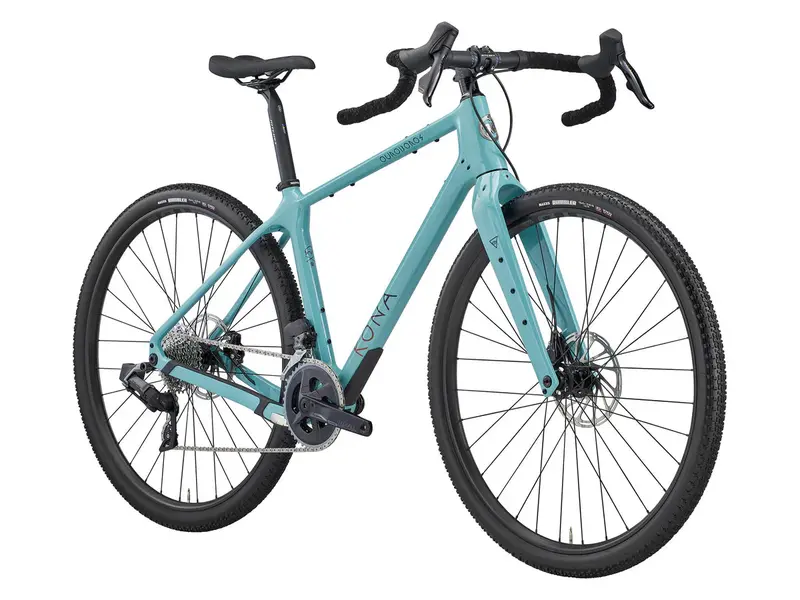

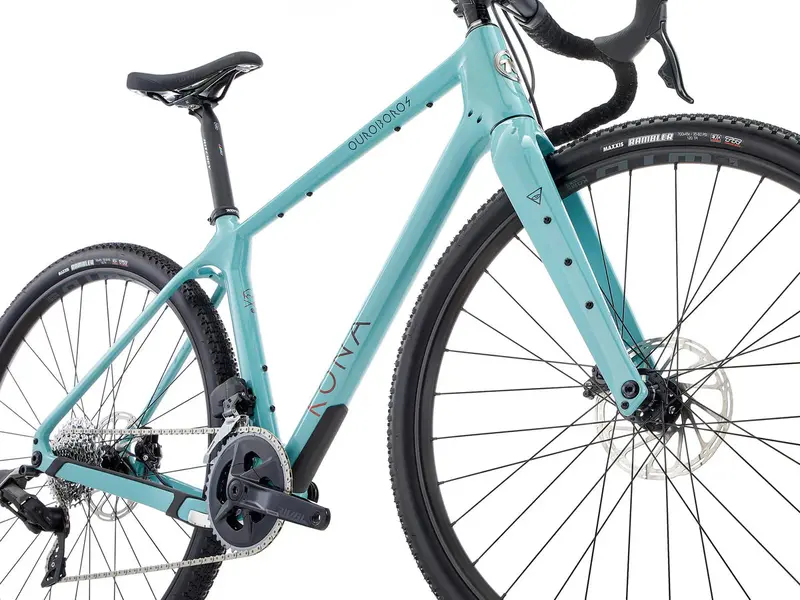

Introducing the Ouroboros CR/DL, a beautifully designed gravel bike that combines traditional aesthetics with lightweight features. With closely-spaced gear steps, this bike allows for effortless cadence maintenance, ensuring a smooth ride no matter the load or speed. Embrace a timeless riding experience with this stunning creation.

FRAME MATERIAL Kona Carbon
SIZES 48, 50, 52,54, 56, 58
REAR SHOCK n/a
FORK Kona Ouroboros Carbon, 420 axle to crown, tapered 1.5 (28.6 – 38.1), 100 x 12mm, internal brake and dynamo routing, native 160 flat mount front, 3-pack bosses + fender mounts
CRANKARMS SRAM Rival DUB Wide
CHAINRINGS SRAM Rival 43/30 Wide
B/B SRAM Press-Fit 86.5 DUB Wide
PEDALS n/a
CHAIN SRAM Rival 12 speed
CASSETTE SRAM Rival XG-1250 10-36t 12 speed XDR cassette
CHAINGUIDE n/a
F/D SRAM Rival ETAP AXS Wide
R/D SRAM Rival ETAP AXS
SHIFTERS SRAM Rival ETAP AXS
BRAKE CALIPERS SRAM Rival Flat Mount Hydraulic
FRONT BRAKE ROTOR SRAM Centerline 6-bolt 180mm
REAR BRAKE ROTOR SRAM Centerline 6-bolt 180mm
BRAKE LEVERS SRAM Rival ETAP AXS
HEADSET FSA Orbit No. 57, ZS 44/56

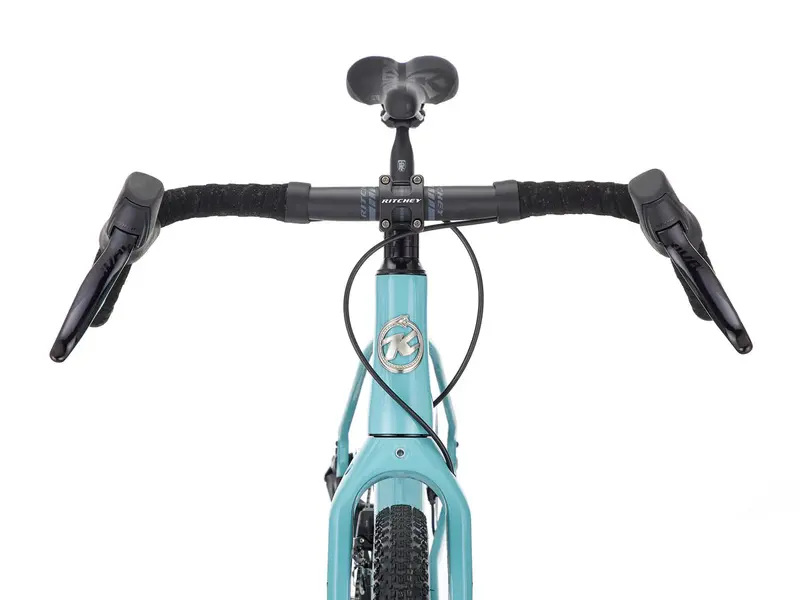

HANDLEBAR Ritchey Venturemax Comp/Venturemax XL Comp, 24-degree flare, 4.6 degree backsweep; 48-50: 460mm, 52-54: 480mm, 56: 500mm, 58: 520mm
STEM Ritchey Trail Comp, 0-degree, 48-52: 45mm; 54-58: 60mm
SEATPOST Ritchey Link 20 WCS, 31.6mm, 20mm setback, 48-52: 350mm; 54-58: 400mm
SEAT CLAMP Kona 34.9mm
GRIPS Velo bar tape
SADDLE WTB Volt Medium Steel SL
FRONT HUB KT-Taiwan QL-S3GR, 100 x 12, 32h, 6-bolt
REAR HUB KT-Taiwan QL-DD4DR, 142 x 12, 32h, 6-bolt, XDR freehub, STAR ratchet
SPOKES Double butted stainless
RIMS WTB KOM i27 6069 alloy, 32h, TCS 2.0, with tubeless tape
FRONT TIRE Maxxis Rambler 700 x 45 TR EXO
REAR TIRE Maxxis Rambler 700 x 45 TR EXO
PAINT COLOR Gloss Harbor Grey w/ Plum & Bloodstone Decals
EXTRAS batteries, charger for derailleurs
