Rbm-30Hv Motorized Section Roller – Automated Round Bending System For Structural Shapes

Description

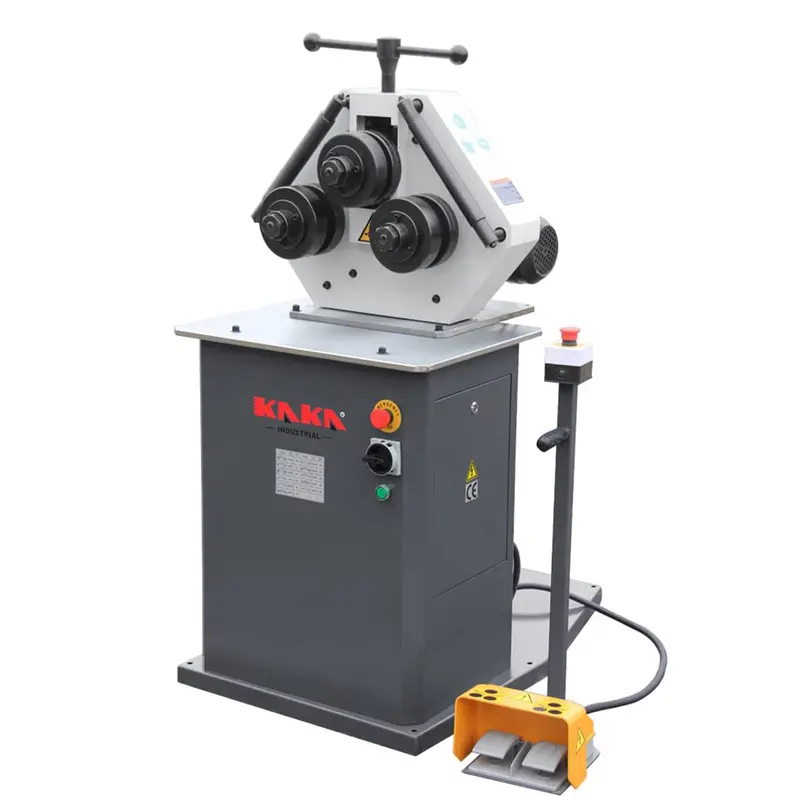

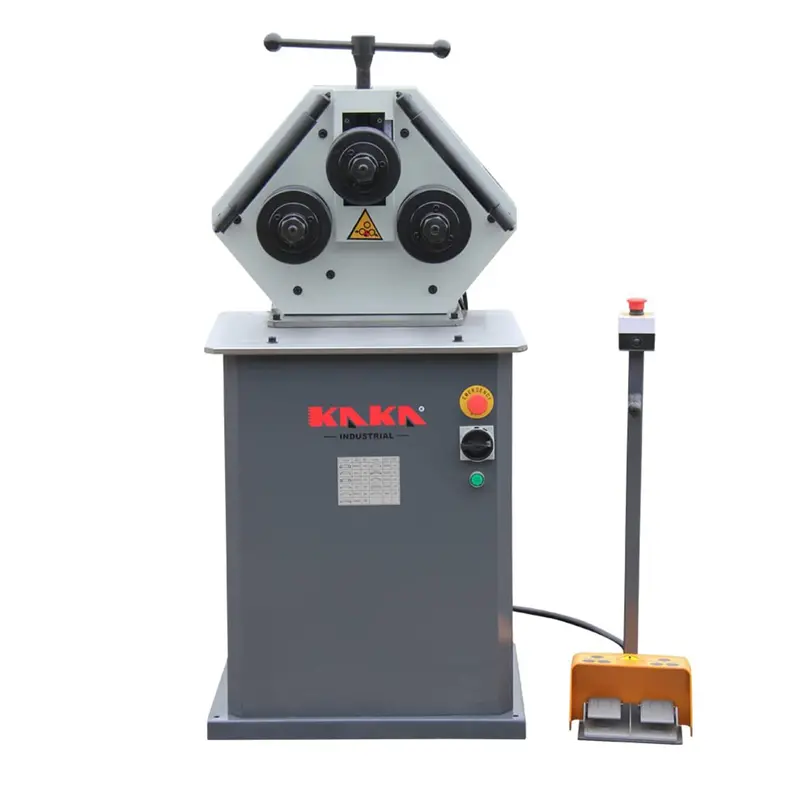

KANG INDUSTRIAL RBM30HV Round Bending Machine

The KANG RBM-30HV Section/Profile Rolling is a powerful and versatile machine engineered for metal fabricators and workshops, enabling the creation of smooth arcs, full circles, and spirals in pipes, tubes, and profiles. By feeding material back and forth through the rollers while gradually increasing pressure from the upper roller, it delivers precise bends ideal for applications like marine and staircase handrails, curved aluminum window frames, tubing coils, and ornamental ironwork.

Versatile Bending Options. Supports vertical and horizontal orientations, allowing for flexible handling of long workpieces, perfect for workshops with varying space needs.

Enhanced Safety and Control. Features forward/reverse foot pedals, manual adjustments, and dual emergency stops, promoting safe, hands-free operation to meet stringent Australian workplace safety standards.

Durable and Convenient Design Section Roller. Solid construction with a built-in storage cabinet ensures longevity and organization, ideal for heavy-duty use in harsh environments.

Features

Geared direct drive, powerful rolling machine

Horizontal and vertical working positions

Moving foot pedal with the emergency stop

Base size 1050x670mm

Standard rolls and guide rolls are included

Comes with various segment rolls for different types of flat bars, angle irons, etc.

Optional Rollers are Available

Shape	Size (mm)	Minimum diameter (mm)
	40×40×3	1000
	50×15	350
	50×30×3	1200
	Ø15 Ø20 Ø25 Ø30	600
	40×40×2    40×40×3 40×40×4    40×40×5	400
	40×40×2    40×40×3 40×40×4    40×40×5	400
	50×50×2    50×50×3 50×50×4    50×50×5	400
	50×25×2    50×25×3 50×25×4    50×25×5	300
	50×25×2    50×25×3 50×25×4    50×25×5	400
	50×25×2    50×25×3 50×25×4    50×25×5	300

All the above processing capacities can be finished by one set of combination roller

Ø35×2    Ø40×2 Ø45×2    Ø50×2 Ø55×2    Ø60×2

1000

Specifications

SKU	191002
Model	RBM30HV
Dia. of roller	30 mm
Power	0.75 kW
Spindle speed	9 r/min
Packing size	116x75x127 cm
N.W./G.W.	224/282 kg
