Description
Removes gears, bearings, pulleys and sprockets
Wide range of automotive and industrial applications
Powered by 1500 series hydraulic ram
Safe and easy to use
8 tonnes of force with minimum effort
Easy to adjust
Non-twisting for improved stability
Supplied with nose piece for use on centred shafts
Self-centring and self-locking
Redesigned legs, improving strength
The separator is a versatile tool where a long reach is required to draw a bearing from a shaft.
The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access.
Makes 8 different twin/triple leg pullers, plus heavy duty bearing separator kit and internal extractor kit
Supplied in metal case
Dimensions:
Puller Spread Min – Max: 50-250mm
Puller Reach Max: 250mm
External Spread Min – Max: 35-140mm
External Reach Max: 863mm
Internal Reach Min – Max: 40 – 150mm

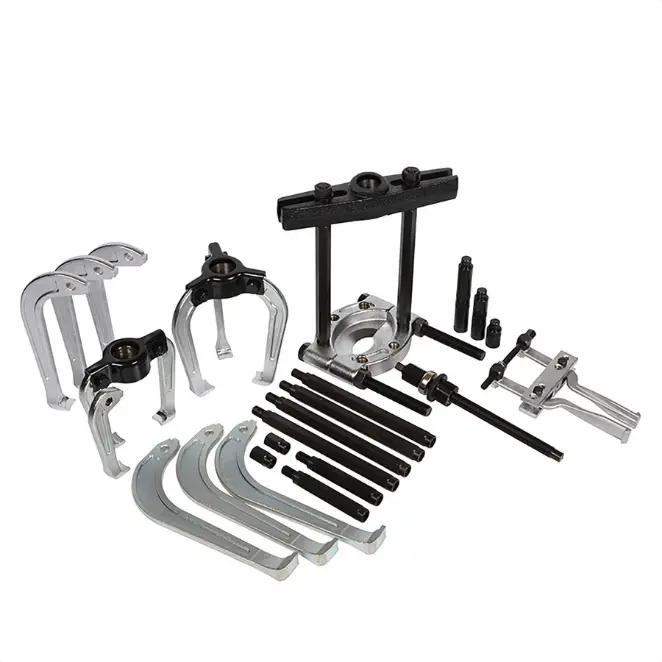

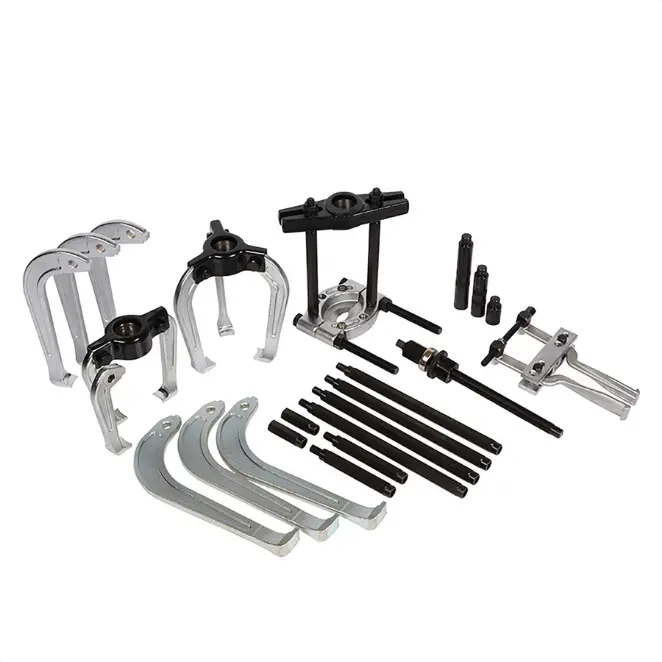

Contents:
1500 Series Hydraulic Ram with Nose Piece
15241200 1 x Twin Head
15341300 1 x Triple Head
15242200 1 x Ram Extension – 50mm
15262400 1 x Ram Extension – 100mm
15272600 1 x Ram Extension – 150mm
15242400 3 x Leg – 100mm
15262600 3 x Leg – 150mm
15282800 3 x Leg – 200mm
15292900 3 x Leg – 250mm (Extra Wide)
19321200 1 x Twin Beam
09520000 1 x Separator 35-145mm
09321500 2 x Main Rod
09321900 4 x Extension Rod
09322300 2 x Extension Rod 5 inch
09350000 1 x Internal Race Extractor
09311100 1 x Forcing Screw C/W Nut
09312100 1 x Thrust Race
09312200 1 x Convertor
09322000 2 x Protector
