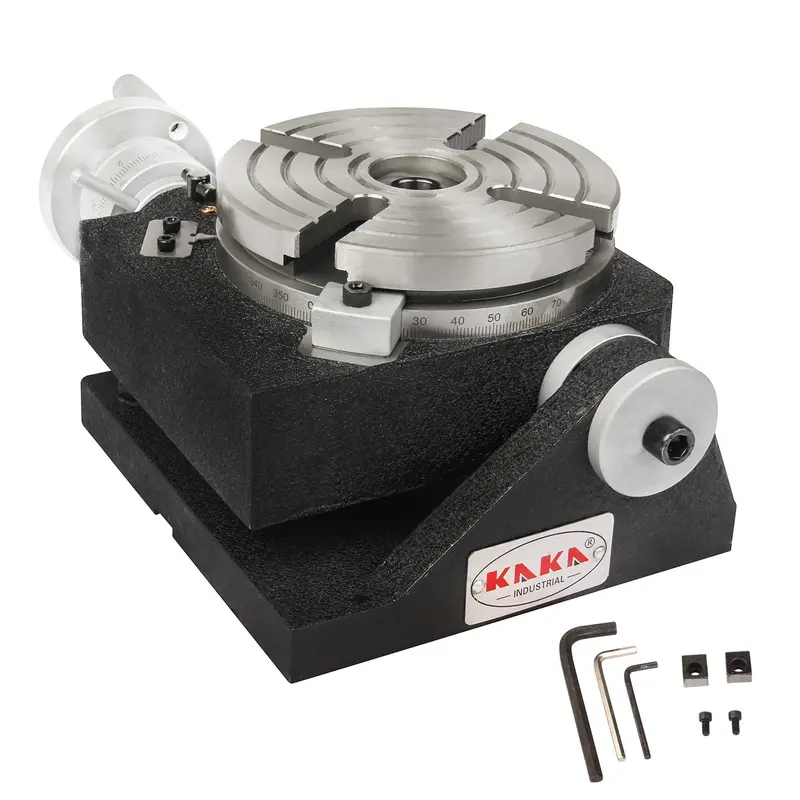

Kang Industrial Tilting Rotary Table TSK-6
The TSK-6 Rotary Table Tilting 150 MM is a precision-engineered work positioning device designed for metalworking applications, enabling accurate drilling or cutting at exact intervals around a fixed horizontal or vertical axis.
Superior Precision and Smooth Performance Workholding. The precision-ground surfaces, concentric bore, and 90:1 gear ratio deliver accurate rotations and adjustments, minimizing errors in detailed operations like drilling or angle setting.
Enhanced Versatility with Tilting. A wide 0-90 degree tilting range allows for flexible positioning in horizontal or vertical modes, making it ideal for complex tasks such as circular cutting or boring in diverse workshop environments.
Efficient Indexing and Setup Rotary Table. The engage/disengage mechanism and dual locks enable quick manual indexing and secure clamping, reducing downtime for users handling multiple projects.
Durable and Practical Design Indexing Table. Features like the deep coolant channel and robust build ensure longevity under demanding use, offering good value for buyers.
Broad Compatibility for Various Applications Accessory. Suitable for a range of metalworking needs, including spot facing and indexing, it integrates well with milling machines or drills, supporting professionals and enthusiasts nationwide.
Features
Tilting range 0-90 ° horizontal to vertical graduated in 1°
Graduation of the table 360°
Table with 4 slots
Worm ratio is 1:90
Specifications
| SKU | 162316 |
| Model | TSK-6 |
| Table dia. | ø 150mm |
| Morse taper of the center hole | MT2 |
| Width of T-slot | 14 mm |
| Modules of worm and worm gear | 1 |
| Width of the locating key | 16 mm |
| Adjacent angle of T-slot | 90° |
| Transmission ratio of the worm gear | 1:90 |
| Graduation of the table | 360° |
| Tilting angle | 0~90° |
| Readout of the handwheel | 1″ |
| Min. value of vernier | 10″ |
| Min. reading of tilting vernier | 1° |
| Indexing accuracy | 60″ |
| Packing size | 32x12x19 cm |
| N.W./G.W. | 20/22 kg |
Installation sketch and dimensions
Unit: mm
| A | B | C | D | F | H | L | M | P |
| 180 | 215 | 160 | 150 | 125 | 65 | 125 | MT2 | 50 |
