Description

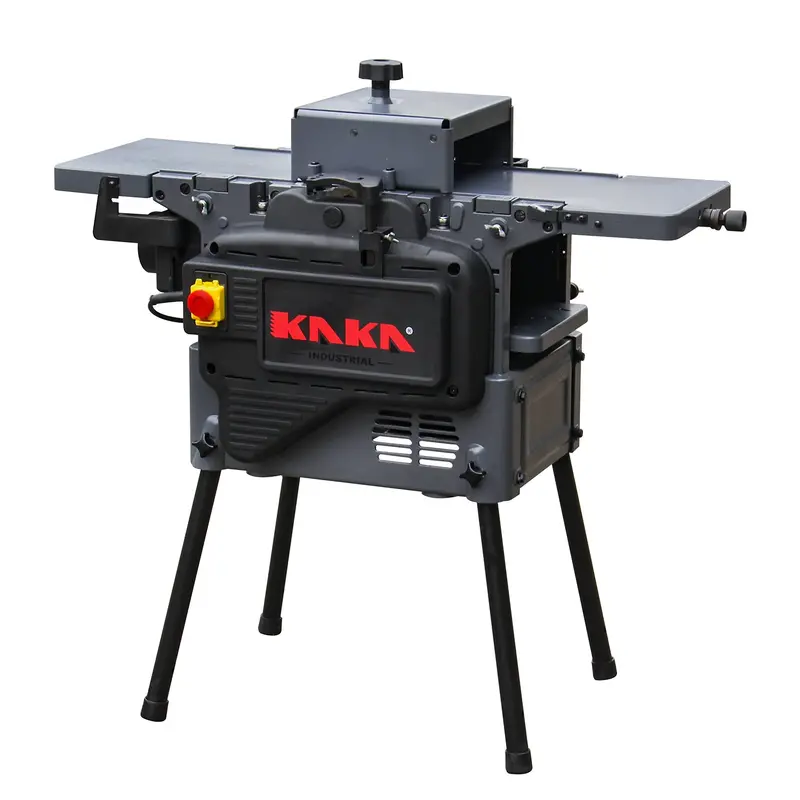

KANG Industrial Wood Working Machine WM3020
The KANG WM3020, 2200W Multifunctional Woodworking Machine is a powerful 5-in-1 combo station that replaces a full workshop of separate tools. Designed for serious DIYers, hobbyists, small cabinet makers and home workshops, this compact yet robust machine combines a table saw, jointer/planer, thicknesser, router/milling table and drill/mortiser, all powered by a single 2200W asynchronous motor.
Ultimate Space & Cost Saver Woodworking Machine. One machine does the job of 5 separate tools (table saw + jointer + thicknesser + router table + drill press). Ideal for the garages, sheds, or small workshops where space is at a premium.
Powerful Yet Clean Operation. 2200W motor handles tough timbers effortlessly, while the built-in dust port connects to standard shop vacs, helping meet dust extraction preferences and keeping your lungs (and workshop) cleaner.
Versatile for Every Project. Rip, crosscut, plane, thickness, route decorative profiles, mortise joints or drill, everything from furniture making, decking, cabinetry, renovations and custom woodworking.
Features
The 2.2 kW powerful motor runs on 240V power
Multifunctional purpose, thicknessing, sawing, planing, milling, and drilling
Standard table for drilling and milling purposes
Thicknesser with a scale to show the position
The Planer function has a cover with a dust port to contact the dust collector, keeping your workspace clean
Specifications
| SKU | 170004 |
| Model | WM-3020 |
| Max. One-way planning thickness | 250 mm |
| One way of planning depth | 0-3.5 mm |
| Max. sawing depth | 85 mm |
| Max. planning thickness with clamping device | 250 mm |
| Max. thickness of clamped object | 60 mm |
| Range of cutting planning angles | 0-45° |
| Saw blade dia. | 250 mm |
| Quantity of knives | 2 pcs |
| Knife length | 250 mm |
| Saw table dimensions | 750×510 mm |
| Planning table size | 1000×318 m |
| Milling/Drilling table size | 370×200 mm |
| Rated idle RPM | 5500 revs/min |
| Rated idle power | 2.2 kW |
| Motor type | S6-40 |
| Packing size | 105x53x55 cm |
| N.W./G.W. | 78/92 kg |
