Btm-500 Pedestal Disc Sander – 500Mm Variable-Speed Sanding Platform

Description

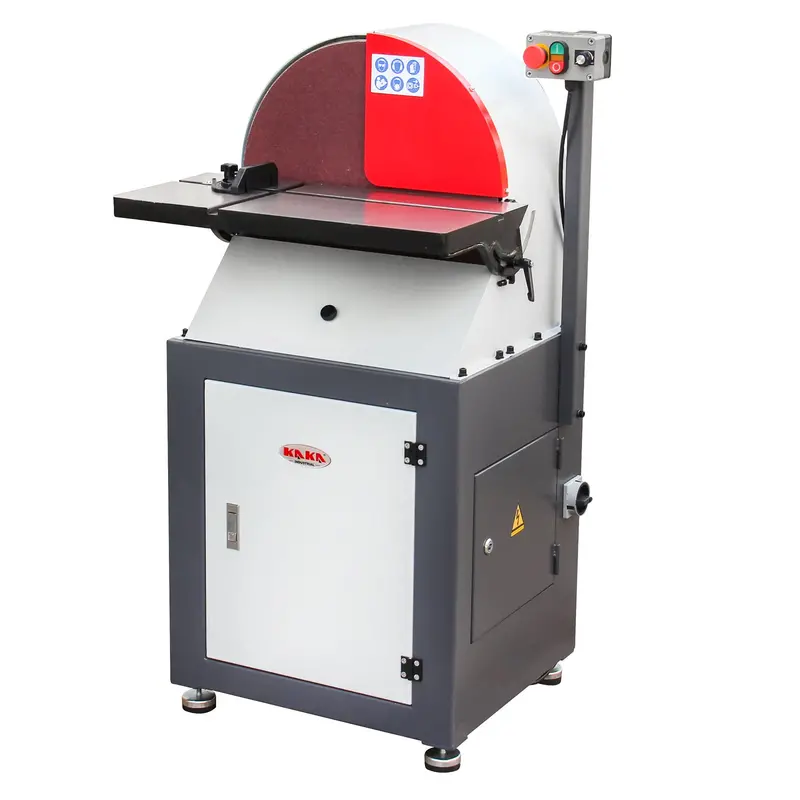

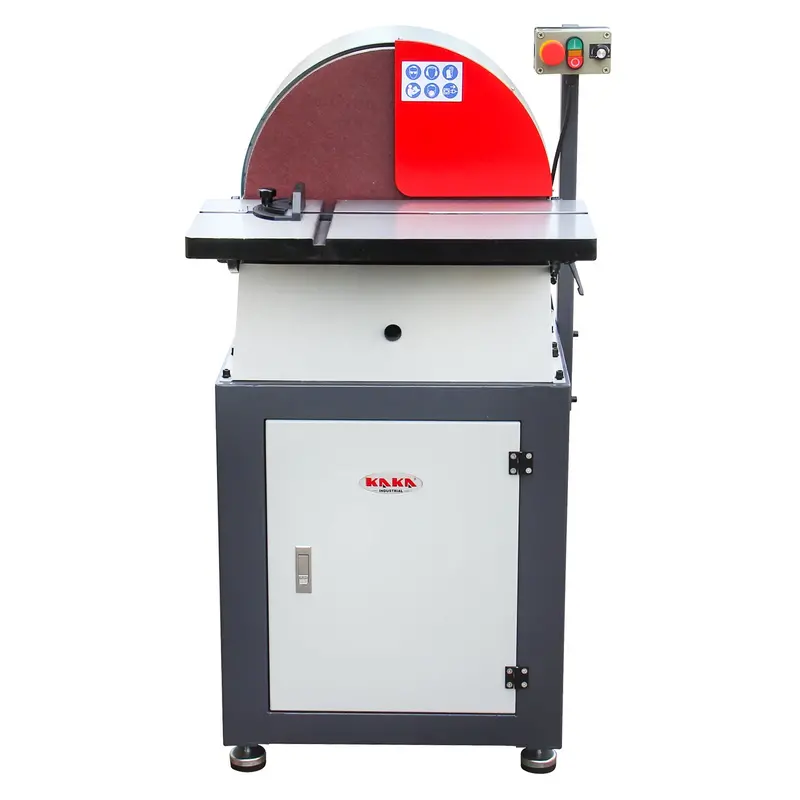

Kang Industrial Disc Sander BTM-500

The KANG BTM-500 is a professional-grade pedestal disc sander featuring a 500mm sanding disc with variable speeds from 500 to 1500 RPM for efficient material removal and finishing on wood, metal, or composites. The disc sander includes a robust cast-iron table 305×636 mm that tilts 0–45°, with X- and Y-miter slots for precise workholding, a bidirectional miter gauge, an electric motor brake for quick stops, a 100 mm dust port for easy integration into dust extraction systems, and a built-in storage cabinet for accessories. Powered by a 1.5 kW, 240V single-phase motor, it measures 700 mm W x 680 mm  D x 1230 mm H and weighs approximately 135kg, making it a stable, floor-standing unit ideal for workshops. This sander reduces sanding time significantly compared to manual methods while delivering consistent, professional results

Variable Speed Control Disc Sander. Easily switch between 500–1500 RPM for optimal performance on wood or metal, enhancing versatility for hobbyists and professionals in woodworking or fabrication.

Safety and Efficiency Sanders. The electric brake stops the disc quickly, and the 100mm dust port integrates with standard dust collection systems (or KANG DVS-14), promoting a safer, cleaner workspace.

Robust Build for Durability Grinding. Cast-iron construction and heavy weight ensure stability during heavy use, suitable for demanding workshops.

Ample Work Surface. Large tilting table with miter slots supports precise angled sanding, ideal for custom projects like furniture making or metal prep common in rural or industrial settings Down Under.

Storage Convenience. Integrated cabinet keeps sanding discs organized, saving space in compact Australian garages or sheds

Features

Runs on 240V Power, single-phase 1.5 kW motor, suitable for home use or an industrial workshop

Large OD 500mm sanding disc

Sturdy cast iron table with X & Y slots, and a miter gauge that works in both directions

Table tilts down to 45 degrees

OD 100mm dust port at the rear of the stand to attach a dust collection hose

The stand also acts as a large store cabinet, keeping extra sanding discs and other helpful items in it

Specifications

SKU	189070
Model	BTM-500
Disc size	508 mm
Table size	636×305 mm
Base size	580×520 mm
Table tilt	Down, 45 degrees
Motor power	1.5 kW
Disc speed	500-1500 rpm
Packing size	78x72x136 cm
N.W./G.W.	135/190 kg
